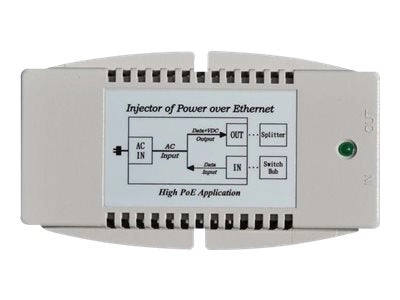

Tycon Power Systems TP-POE-HP-48G-RC - PoE injector - AC 120/240 V - 50 Watt - output connectors: 1

The TP-POE-HP-48G-RC is a special Power over Ethernet inserter offered by Tycon Power which has a regulated 48VDC PoE output. Normally, higher power inserters have an output voltage of 56V. This inserter is regulated to 48VDC PoE output to be compatible with devices that are sensitive to the higher voltages.
These are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on Ethernet pins 4.5(V ) and 7.8(V-).
The units are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 48VDC 50W with load regulation within 5%. They have various protections for surge, short circuit, overload and overvoltage.

• Built-in Ethernet and AC surge protection
• Auto ranging switching power supply
• Short circuit, over current and over voltage protection
• 10/100/1000Mb compatible
• Compact size
