Product Details
+

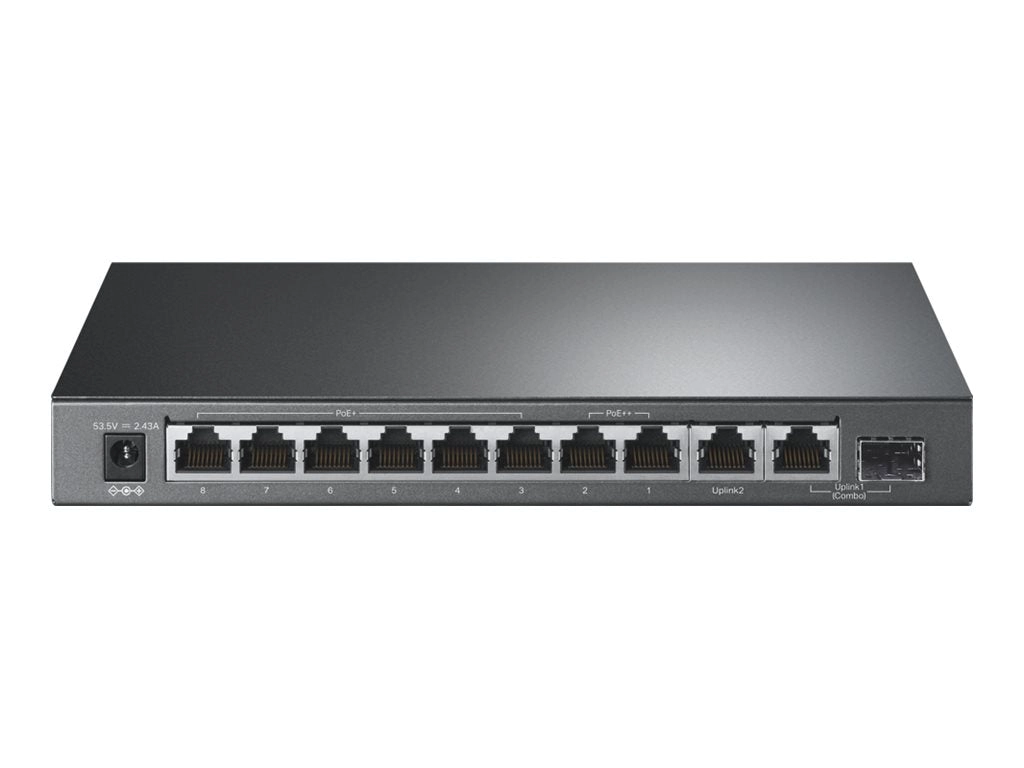

TP-Link TL-SG1210PP V1 - Switch - unmanaged - 2 x 10/100/1000 (PoE ) 6 x 10/100/1000 (PoE ) 1 x combo Gigabit SFP/RJ-45 (uplink) 1 x 10/100/1000 (uplink) - desktop - PoE (123 W)
What's in the Box:
- Power over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. - Overload arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is bigger than or equals 123 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. - Intelligent power management
Priority (port 1 > port 2 ... ... > port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6. - Highlight performance
Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-4. Priority Mode ensures high priority of ports 1 - 2 to guarantee the quality of the sensitive applications. Isolation Mode allows one-click client traffic separation for higher security and performance. With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered
devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch
for a long period, the switch will reboot it automatically. - Easy to use
TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE and 2-Port PoE TL-SG1210PP is a great selection for expanding your network.
- 9× 10/100/1000 Mbps RJ-45 ports, 1x 1000 Mbps combo SFP/RJ-45 port
- With 2x PoE ports and 6x PoE ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port and 60 W for PoE port
- Supports PoE Power up to 123 W for all PoE ports
- Plug-and-Play, no configuration and installation required
- Up to 250 m data and power transmitting range under Extend Mode
- PoE auto recovery ensures stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Priority Mode ensures the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
What's in the Box:
- TP-Link TL-SG1210PP V1
- External power adapter
